UL 2835 LOW VOLTAGE COMPUTER CABLE 低压电脑线

■ 产品说明

■ PRODUCT DESCRIPTION

● 额定温度：60℃
● 额定电压：30V
● 参考标准：UL758,UL1581
● 导体使用单支或绞合30~22镀锡或裸铜
● SR-PVC绝缘，符合ROHS环保标准
● 镀锡或裸铜编织屏蔽
● PVC护套，符合ROHS环保标准
● 通过UL VW-1、cUL FT1及JQA F-Mark阻燃测试
● 使用标准绝缘厚度、易裁线、易剥皮
● 用于一般电子、电器设备内部连接线

● Rated temperature：60℃
● Rated voltage：30V
● Reference standard：UL758,UL1581
● Solid or stranded ,tinned or bare copper conductor 30~22 min.
● SR-PVC insulation , comply with ROHS environmental standard
● Tinned or bare copper wire braid shield
● PVC jacket , comply with ROHS environmental standard
● Passes UL VW-1,cUL FT1 and JQA F-Mark flame test
● Uniform insulation thickness to ensure easy stripping and cutting
● For general purpose internal wiring of appliance

■ 印字
AWM 2835 E238824 VW-1 60℃ 30V （）AWG HUTAI c AWM I A FT1 60℃ 30V （）AWG -F- -LF-

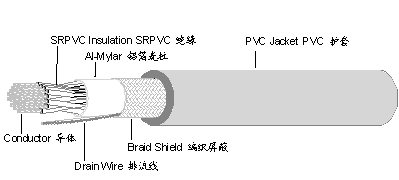

■ 产品结构

导体 CONDUCTOR				绝缘 INSULATION		屏蔽 SHIELD	排流线 DRAIN	编织 BRAID	护套 JACKET		最大导体电阻 MAX.COND. RESISTANCE (Ω/km,20℃,DC)
规格 AWG	构造 CONSTR- UCTION (No./mm)	外径 DIA. (mm)	芯数 (No.)	绝缘厚度 INSULATION THICKNESS (mm)	外径 O.D. (mm)	构造 CONSTRU- CTION	构造 CONSTR- UCTION (No./mm)	构造 CONSTRU- CTION (No./No./mm)	护套厚度 JACKET THICKNESS (mm)	外径 O.D. (mm)	最大导体电阻 MAX.COND. RESISTANCE (Ω/km,20℃,DC)
30	7/0.10	0.30	2	0.25	0.80	Al-mylar	7/0.10	16/4/0.10TD	0.50	3.10	381
			3	0.25	0.80	Al-mylar		16/4/0.10TD	0.54	3.30
			4	0.25	0.80	Al-mylar		16/4/0.10TD	0.54	3.50
			5	0.25	0.80	Al-mylar		16/5/0.10TD	0.52	3.70
			6	0.25	0.80	Al-mylar		16/6/0.10TD	0.55	4.00
			7	0.25	0.80	Al-mylar		16/6/0.10TD	0.55	4.00
			8	0.25	0.80	Al-mylar		16/6/0.10TD	0.53	4.20
			9	0.25	0.80	Al-mylar		16/7/0.10TD	0.57	4.60
			10	0.25	0.80	Al-mylar		16/7/0.10TD	0.60	4.90
28	7/0.127	0.38	2	0.26	0.90	Al-mylar	7/0.127	16/4/0.10TD	0.50	3.30	239
			3	0.26	0.90	Al-mylar		16/5/0.10TD	0.53	3.50
			4	0.26	0.90	Al-mylar		16/5/0.10TD	0.51	3.70
			5	0.26	0.90	Al-mylar		16/6/0.10TD	0.54	4.00
			6	0.26	0.90	Al-mylar		16/6/0.10TD	0.55	4.30
			7	0.26	0.90	Al-mylar		16/6/0.10TD	0.55	4.30
			8	0.26	0.90	Al-mylar		16/7/0.10TD	0.57	4.60
			9	0.26	0.90	Al-mylar		16/7/0.10TD	0.59	5.00
			10	0.26	0.90	Al-mylar		24/5/0.10TD	0.60	5.30
26	7/0.16	0.48	2	0.26	1.00	Al-mylar	7/0.16	16/5/0.10TD	0.50	3.50	150
			3	0.26	1.00	Al-mylar		16/5/0.10TD	0.47	3.60
			4	0.26	1.00	Al-mylar		16/6/0.10TD	0.54	4.00
			5	0.26	1.00	Al-mylar		16/6/0.10TD	0.50	4.20
			6	0.26	1.00	Al-mylar		16/6/0.10TD	0.55	4.60
			7	0.26	1.00	Al-mylar		16/7/0.10TD	0.55	4.60
			8	0.26	1.00	Al-mylar		16/7/0.10TD	0.60	5.00
			9	0.26	1.00	Al-mylar		24/5/0.10TD	0.60	5.40
			10	0.26	1.00	Al-mylar		24/6/0.10TD	0.60	5.70
24	11/0.16	0.61	2	0.25	1.10	Al-mylar	11/0.16	16/5/0.10TD	0.50	3.70	94.2
			3	0.25	1.10	Al-mylar		16/5/0.10TD	0.52	3.90
			4	0.25	1.10	Al-mylar		16/6/0.10TD	0.52	4.20
			5	0.25	1.10	Al-mylar		16/7/0.10TD	0.52	4.50
			6	0.25	1.10	Al-mylar		16/7/0.10TD	0.55	4.90
			7	0.25	1.10	Al-mylar		16/7/0.10TD	0.55	4.90
			8	0.25	1.10	Al-mylar		16/7/0.10TD	0.59	5.30
			9	0.25	1.10	Al-mylar		24/6/0.10TD	0.62	5.80
			10	0.25	1.10	Al-mylar		24/6/0.10TD	0.65	6.20
22	17/0.16	0.76	2	0.27	1.30	Al-mylar	17/0.16	16/6/0.10TD	0.50	4.10	59.4
			3	0.27	1.30	Al-mylar		16/6/0.10TD	0.50	4.30
			4	0.27	1.30	Al-mylar		16/7/0.10TD	0.58	4.80
			5	0.27	1.30	Al-mylar		24/5/0.10TD	0.60	5.20
			6	0.27	1.30	Al-mylar		24/6/0.10TD	0.60	5.60
			7	0.27	1.30	Al-mylar		24/6/0.10TD	0.60	5.60
			8	0.27	1.30	Al-mylar		24/6/0.10TD	0.66	6.10
			9	0.27	1.30	Al-mylar		24/7/0.10TD	0.65	6.60
			10	0.27	1.30	Al-mylar		24/7/0.10TD	0.70	7.10
